Products and Product Applications
Delco-Remy Electrical
Components for the Reo and Federal Truck, 20-Ton, 6x4
This page added 11-18-2020.

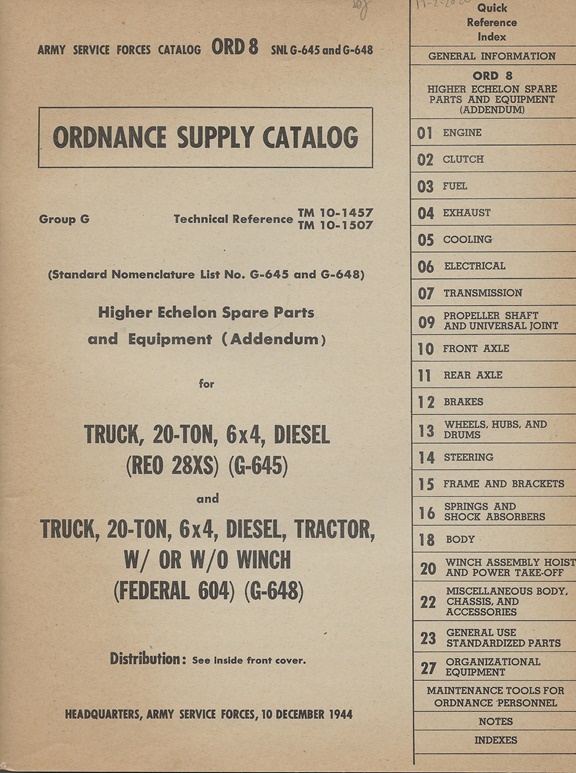

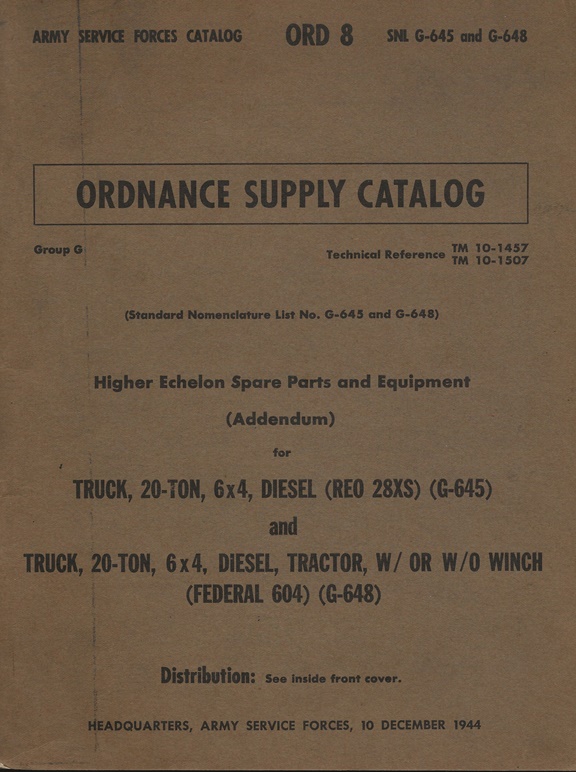

Ordnance Supply Catalogs
were used by the U.S. Army in World War Two to order and stock repair
parts for all of the equipment it used. The Catalogs had a
complete listing of not only the original components that went into the
construction of the units, but sub-components and repair kits as well.
This is shown below where not only are the sixteen Delco-Remy OEM
electrical components listed, but dozens of spare part and spare parts
kits are also listed.
Each and every piece of equipment used by the military, whether it was for the U.S. Army or the U.S. Navy,
had a similar document. During World War Two, the U.S. military
emphasized standardization of equipment in order to keep the number of
spare parts to a minimum and also assure equipment in repair had the
necessary spare parts. The supply and logistics issues of keeping
the American Army and Navy in spare parts all over the world during
World War Two is
mind-boggling.
This page shows that every major part of the
vehicle is included. Once Delco-Remy or other companies were
awarded contracts to supply components for this vehicle, they would
then need to supply a list of spare parts and repair kits to the Army
Service Forces to assemble into this book.
The Truck, 20-Ton, 6x4, Diesel was a Federal
Truck Company of Detroit, MI design, which was also built by The Reo
Motor Car Company in nearby Lansing, MI. The trucks were designed
and built to pull semi-trailers with heavy loads, including tanks. The one shown above is a Federal-built unit
because it has a winch. Reo only built the non-winch version.
Both types were powered by a Cummins HB600 engine. Delco-Remy
shipped the cranking motors and DC generators to Cummins Engine Company in
Columbus, IN. D-R also shipped switches to Federal Truck in Detroit and the Reo
Motor Car Company in Lansing, MI.

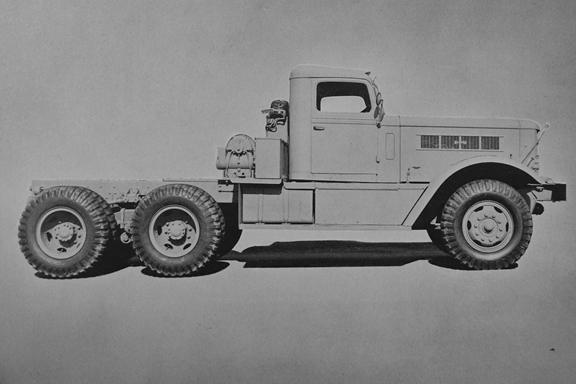

This is the Reo XS-28 20-ton, 6x4 diesel
trailer truck.
Number of Federal and Reo 20-ton
6x4 Tractors |
Type |
Model |
1942 |
1943 |
1944 |
1945 |
Total |
20-ton 6x4
Tractor |
Federal 604 |
833 |
130 |
480 |
|
1,443 |
20-ton 6x4 Tractor |
Reo 28XS |
700 |
|
|
|
700 |
Total |
|
1,533 |
130 |
480 |
|
2,143 |
Delco-Remy supplied the sixteen OEM electrical
components for 2,143 20-Ton, 6x4 Diesel trucks form 1942 to 1944.
Delco-Remy OEM Parts for the Federal and Reo 20-Ton, 6x4
Trucks
Delco-Remy supplied 2,143 of each of these for these trucks.
The listing will below will show dozens of other components
to repair these items. |
Component |
D-R Part Number |
Generator, Assembly |
1106656 |
Regulator, Current, Assembly |
1183180 |
Regulator, Generator, Voltage and Current, Assembly |
1118476 |
Regulator, Voltage, Assembly |
185690 |
Relay, Cutout, for Generator, Assembly |
1831041 |
Motor, Cranking, 24 Volt |
000711 |
Relay, Instrument Control |
269-S |
Solenoid, Fuel Pump, Assembly |
1118061 |
Solenoid, Cranking Motor |
1118043 |
Switch, Blackout, Assembly |
1194513 |
Switch, Instrument Panel Light, Assembly |
1195602 |
Switch, Light Dimmer, Assembly |
1197014 |
Switch, Series Parallel |
407-J |
Switch, Solenoid, Shutoff, (Fuel Pump Solenoid) |
1196024 |
Circuit Breaker, Cut-Out, Thermal |
1185099 |
Relay, Horn |
1116775 |
The information in a U.S. Army
Ordnance Supply Catalog provided a list of spare parts to repair
and keep the vehicles running. Column 5 gives the part description
and the supplier's part number for each component. For Delco-Remy,
these are the DR part numbers. Columns 6, 7, and 8 provided the
number of spare parts needed over a year's period for 100 vehicles.
Delco-Remy and other suppliers would
provide these numbers for their respective products.

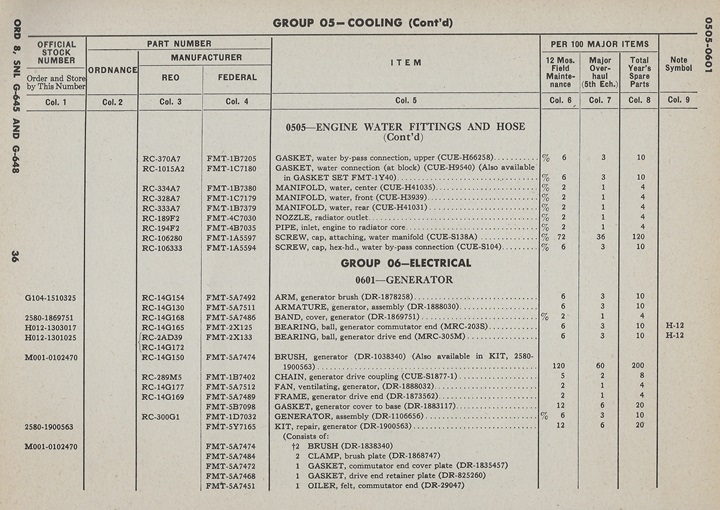

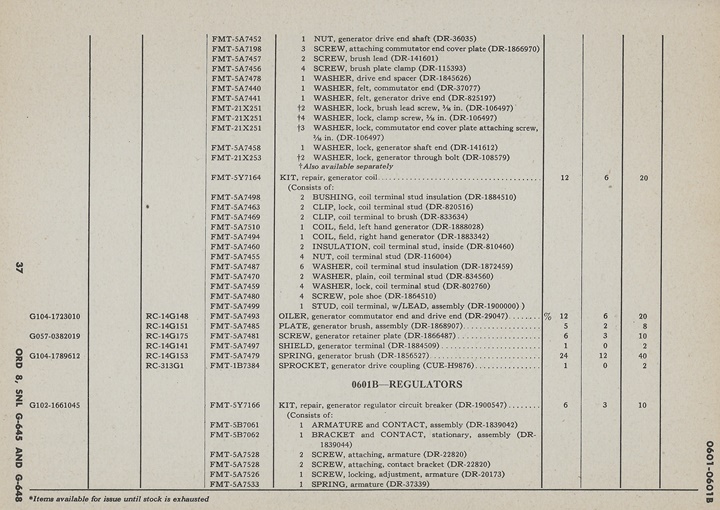

The DC generator and its spare parts and
spare parts kits are listed starting on this page. The spare parts
kits also have listed each part that is in them.

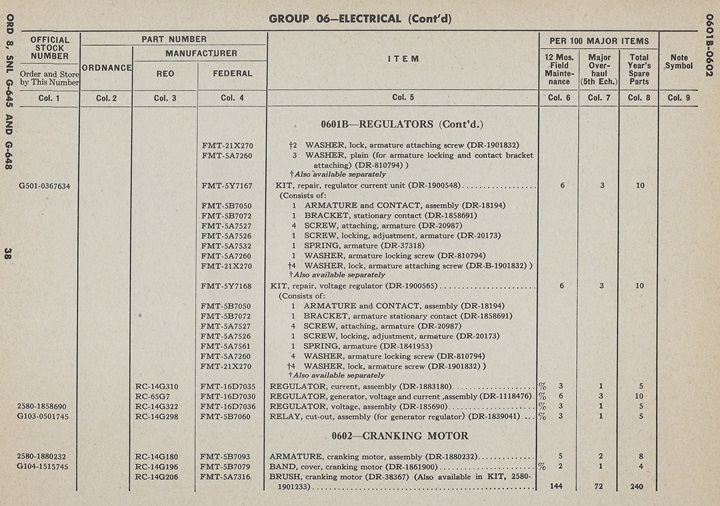

Regulators and spare parts start on this
page.

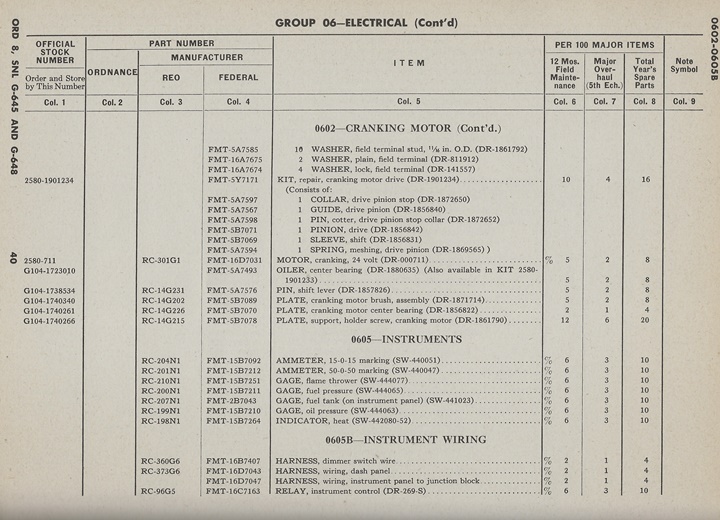

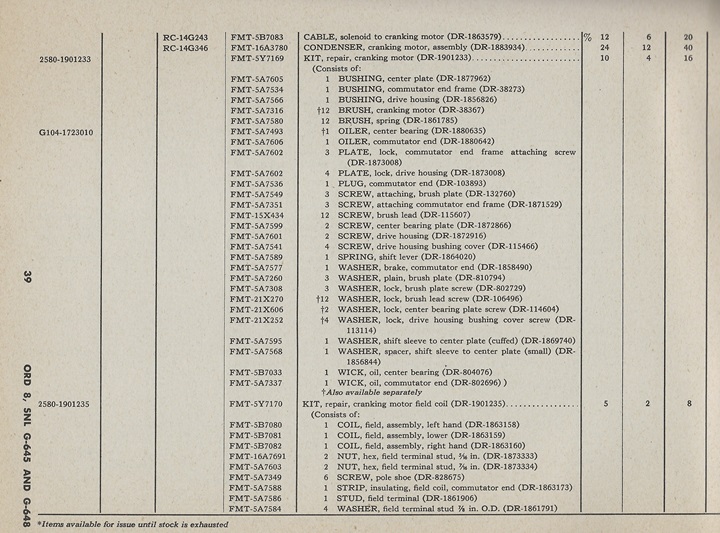

Cranking motors and spare parts begin on
this page.
Delco-Remy has one relay listed under the
category of
Instrument Wiring.

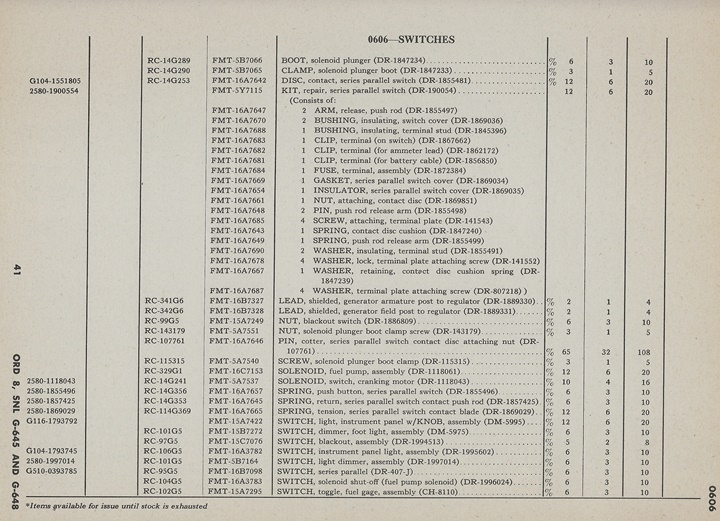

Switches and spare parts are listed on this
page.

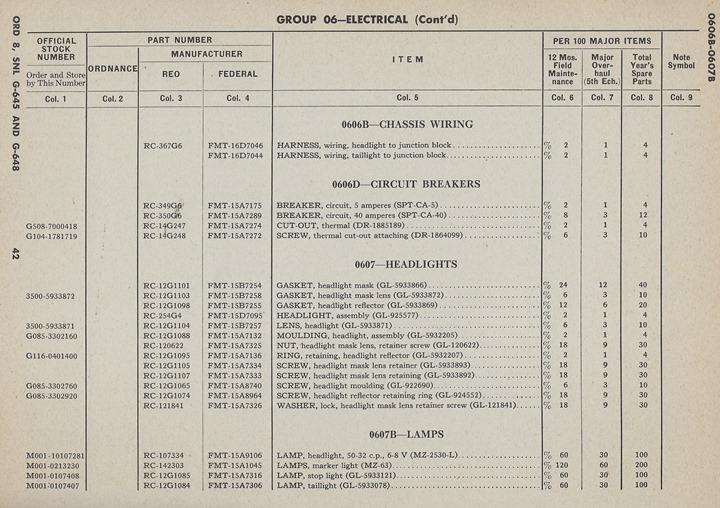

The Guide Lamp Division of General Motors
was also a supplier for this vehicle.

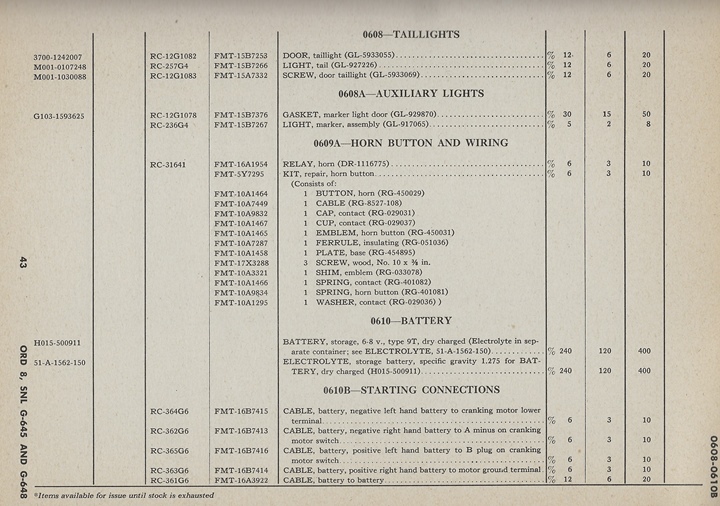

The horn button is on this page. There
appears to be an error in the repair kit for it. RG is the
designation for Ross Gear and Tool of Lafayette, IN which made steering
gears for this vehicle.

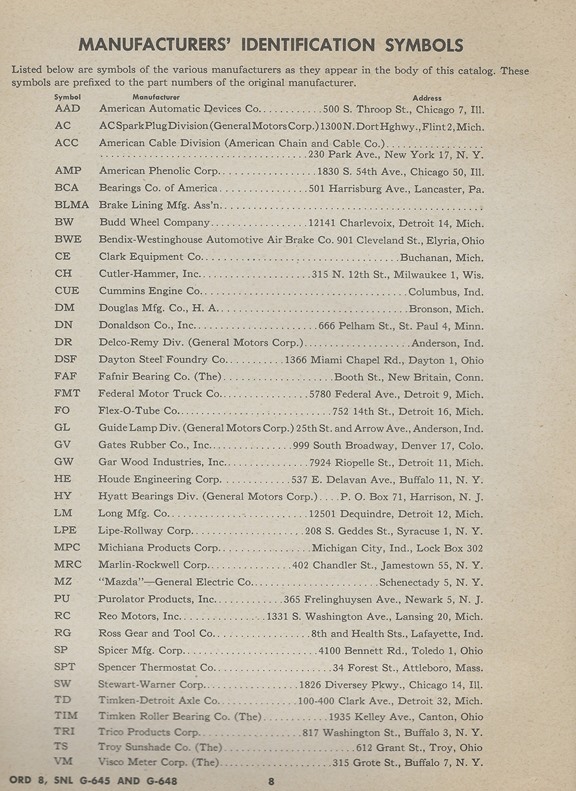

The complete list of suppliers for the
20-Ton, 6x6 Truck.
|
